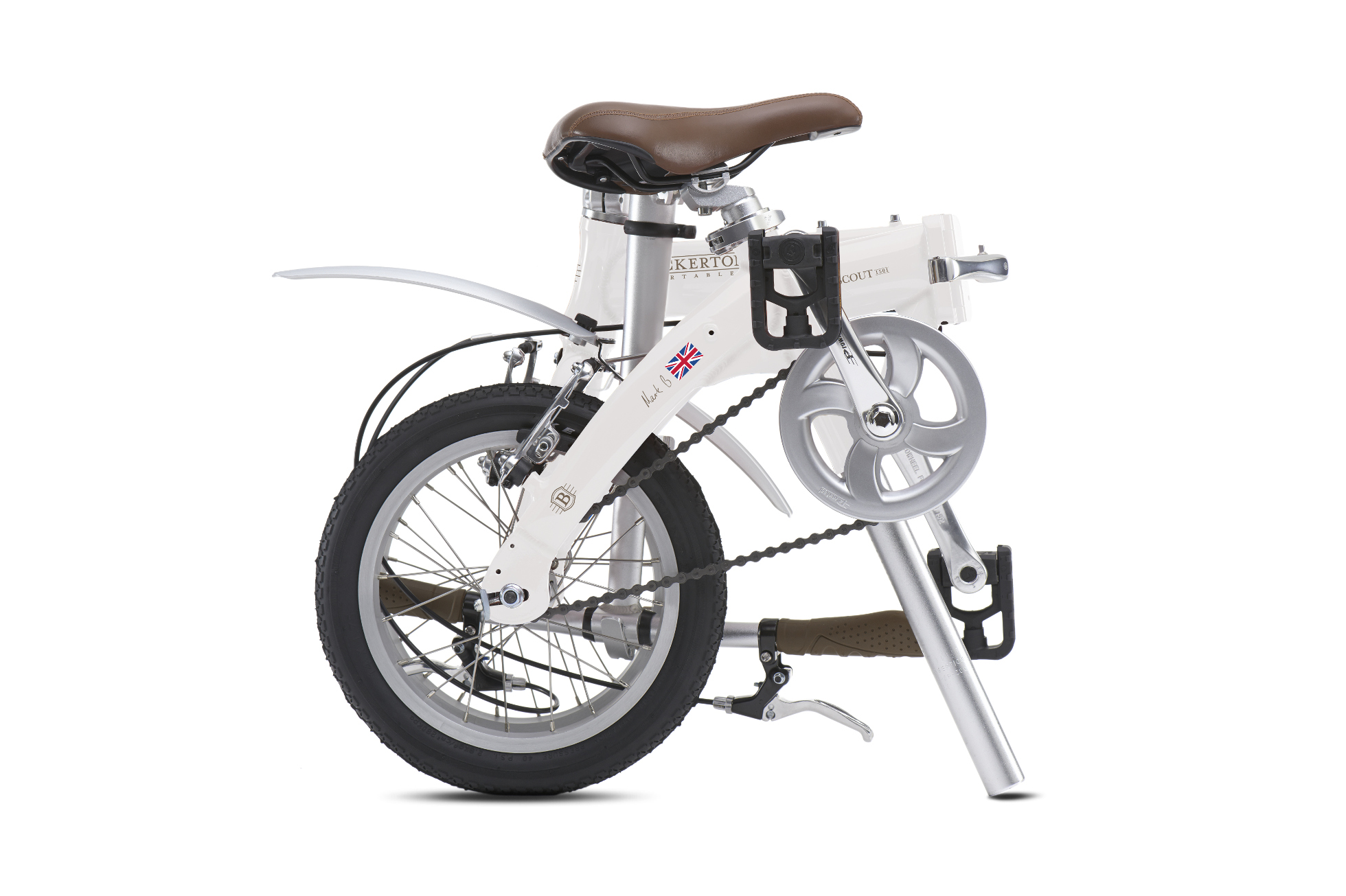

Scout 1501 Country

-----

Specifications

Scout 1501 Country – Specifications
Wheel Size 14″
Speeds 1
Weight 9.3 kg (20.5 lb)
Folded Size 35 x 64 x 58 cm (13.8” x 25.2” x 22.8”)
Fold Time 10 seconds
Frame Sizes One size
Gear Inches 46″ (3.67 m)
Distance: Seatpost to Handlebar Min: 490 mm (19.3”) Max: 510 mm (20.1”)
Distance: Saddle to Pedal Min: 610 mm (24.0”) Max: 820 mm (32.3”)
Suggested Rider Height 135 – 167 (4’5″ – 5’6″)
Max Load Weight 75 kg (165 lb)
FRAME
Frame Scout platform, aluminum, FBL Joint
Fork Aluminum
COCKPIT
Handlepost Bickerton Forged Aluminum
Stem Telescopic, 6061-Al, QR
Headset Ball bearing
Handlebar Flat bar, 6061-Al
Grips Ergo, Single Density
Bar Tape N/A
Saddle Comfort
Seatpost 33.9 mm, 6061-Al, micro-adjust clamp
Seatpost Clamp 33.9 mm
Pedals Folding, reinforced nylon body
BRAKES
Front Brake Aluminium V-brake
Rear Brake Aluminium V-brake
Brake Levers V-brake, aluminium, bracket and lever
Brake Cable & Housing Anti-compression housing, slick cables
WHEELS
Front Hub Mini, aluminum
Rear Hub Aluminum
Spokes and Nipples Stainless steel, brass nipples
Rims Aluminum
Tyres Kenda K149, 14×1.75″
TRANSMISSION
Shifter(s) N/A
Front Mech N/A
Rear Mech N/A
Crankset Cold-forged 6061 aluminum crank arms, single chainguard
Cassette/Freewheel N/A
Bottom Bracket Ball bearing
Chain Taya
Shifter Cable & Housing SP
EXTRAS
Bell Aluminum
Chainguard N/A
Kickstand Steel, CP
Clip System Yes
Luggage Socket N/A
Front Light N/A
Rear Light N/A
Mudguards 14″ mudguards
Rack(s) N/A
